| Type | B1S |
 |
 |
| Order no. | 57744 | ||
| Crystal size | 24 mm Ø | ||
| Frequency | 1 MHz | ||
| Bandwidth | 0,87 .. 1,12 MHz | ||
| Operating range | 70 .. 1200 mm | ||

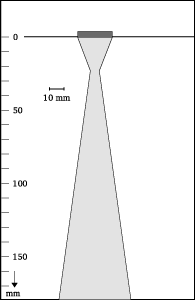

| Near field length | 23 mm | ||
| Echo width | 6 mm | ||
| Contact area | 29 mm Ø | ||
| Remark | with wedges KSM.. also applied as angle beam probe. Probes with other damping values (bandwidth) or connection sockets can be supplied. Other frequencies and element dimensions on request. |
