| Type | B4S |
 |
 |
| Order no. | 57746 | ||
| Crystal size | 24 mm Ø | ||
| Frequency | 4 MHz | ||
| Bandwidth | 3,5 .. 4,5 MHz | ||
| Operating range | 15 .. 3000 mm | ||

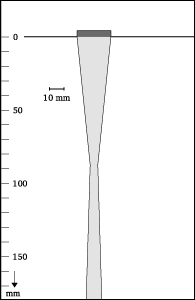

| Near field length | 88 mm | ||
| Echo width | 3 mm | ||
| Contact area | 29 mm Ø | ||
| Remark | with wedges KSM.. also applied as angle beam probe. Probes with other damping values (bandwidth) or connection sockets can be supplied. Other frequencies and element dimensions on request. Also supplied with connector on top type: (B.S-O) |
