| Type | K1SM+KSMY45 |
 |
| Order no. | 57873+56066 | |
| Crystal size | 28 mm Ø | |
| Frequency | 1 MHz | |
| Beam angle | 45 ° | |
| Bandwidth | 0,7 .. 1,3 MHz | |
| Operating range | 25 .. 500 mm | |

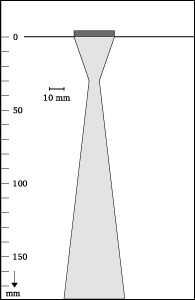

| Near field length | 31 mm | |
| Echo width | 5 mm | |
| Contact area | 55x45 mm | |
| Remark | These probes are identical to the straight beam probes having the same name. This is the reason that wedges KSMY.. must be ordered separately for longitudinal waves and KSM for transverse waves, see accessories! |
