| Type | B2SL |
 |
 |
| Order no. | 56106 | ||
| Crystal size | 30 mm Ø | ||
| Frequency | 2 MHz | ||
| Bandwidth | 1,75 .. 2,25 MHz | ||
| Operating range | 40 .. 3100 mm | ||

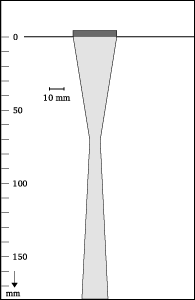

| Near field length | 71 mm | ||
| Echo width | 5 mm | ||
| Contact area | 39 mm Ø | ||
| Remark | with wedges KS.. also applied as angle beam probe. Probes with other damping values (bandwidth) or connection sockets can be supplied. Other frequencies and element dimensions on request. |
