| Type | K1S |
 |
 |
| Order no. | 56125 | ||
| Crystal size | 34 mm Ø | ||
| Frequency | 1 MHz | ||
| Bandwidth | 0,7 .. 1,3 MHz | ||
| Operating range | 50 .. 1350 mm | ||

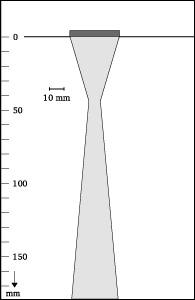

| Near field length | 46 mm | ||
| Echo width | 6 mm | ||
| Contact area | 39 mm Ø | ||
| Remark | with wedges KS.. also applied as angle beam probe. Probes with other damping values (bandwidth) or connection sockets can be supplied. Other frequencies and element dimensions on request. Coarse grain probes for testing strongly sound attenuating materials. |
